Peak Power- 564 w
Speed- 20mph
Range- 55mi
Max Load- 300lbs
Peak Torque- 52 n.m
Battery- 48 V 10 Ah
Tire- 27.5 × 2.1in
Charger- 54.6 V, 3 A
Lightweight & Easy To Handle
Designed for riders who want effortless control, easy maneuverability, and a comfortable ride wherever the day takes them.

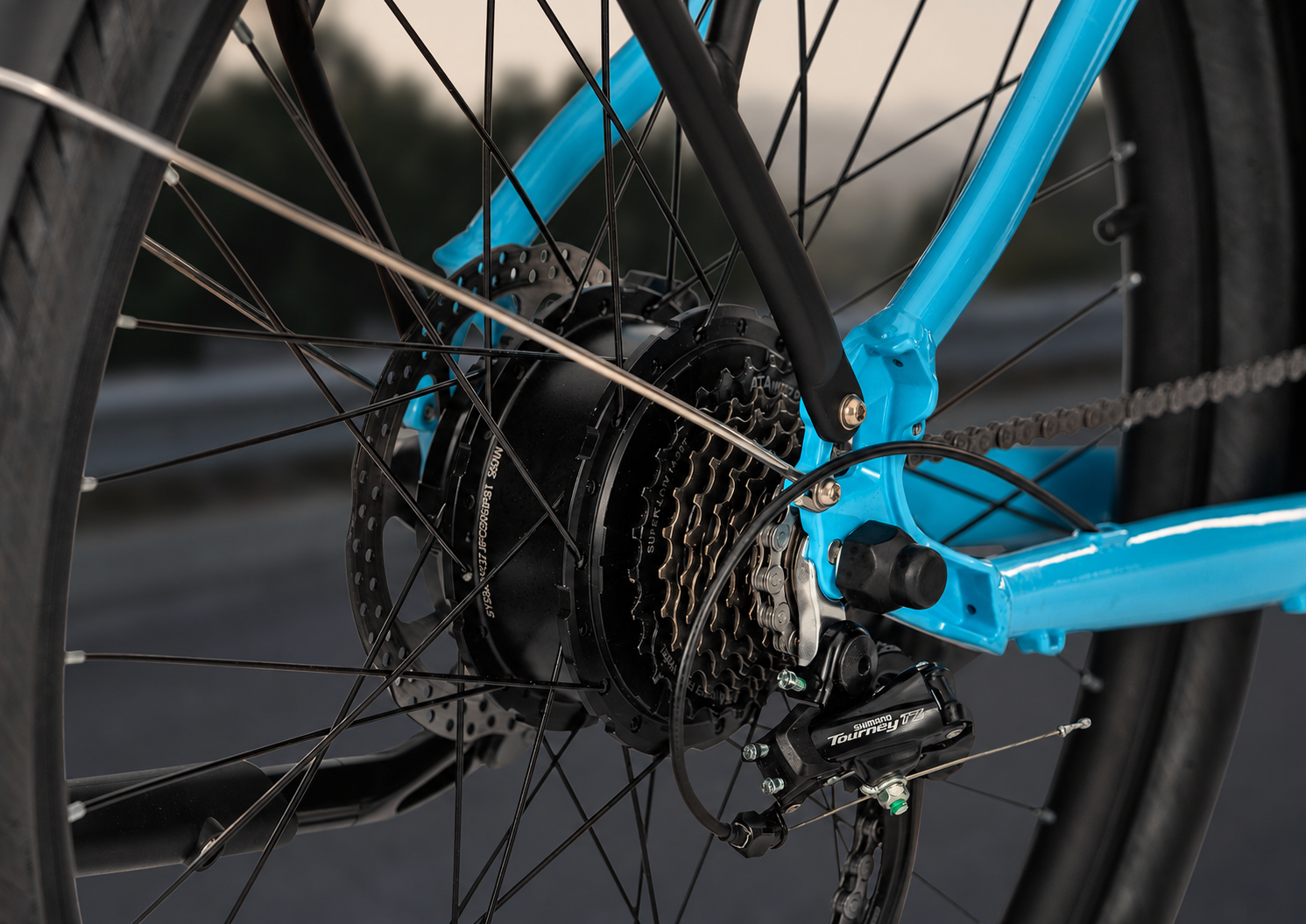

350W
Motor

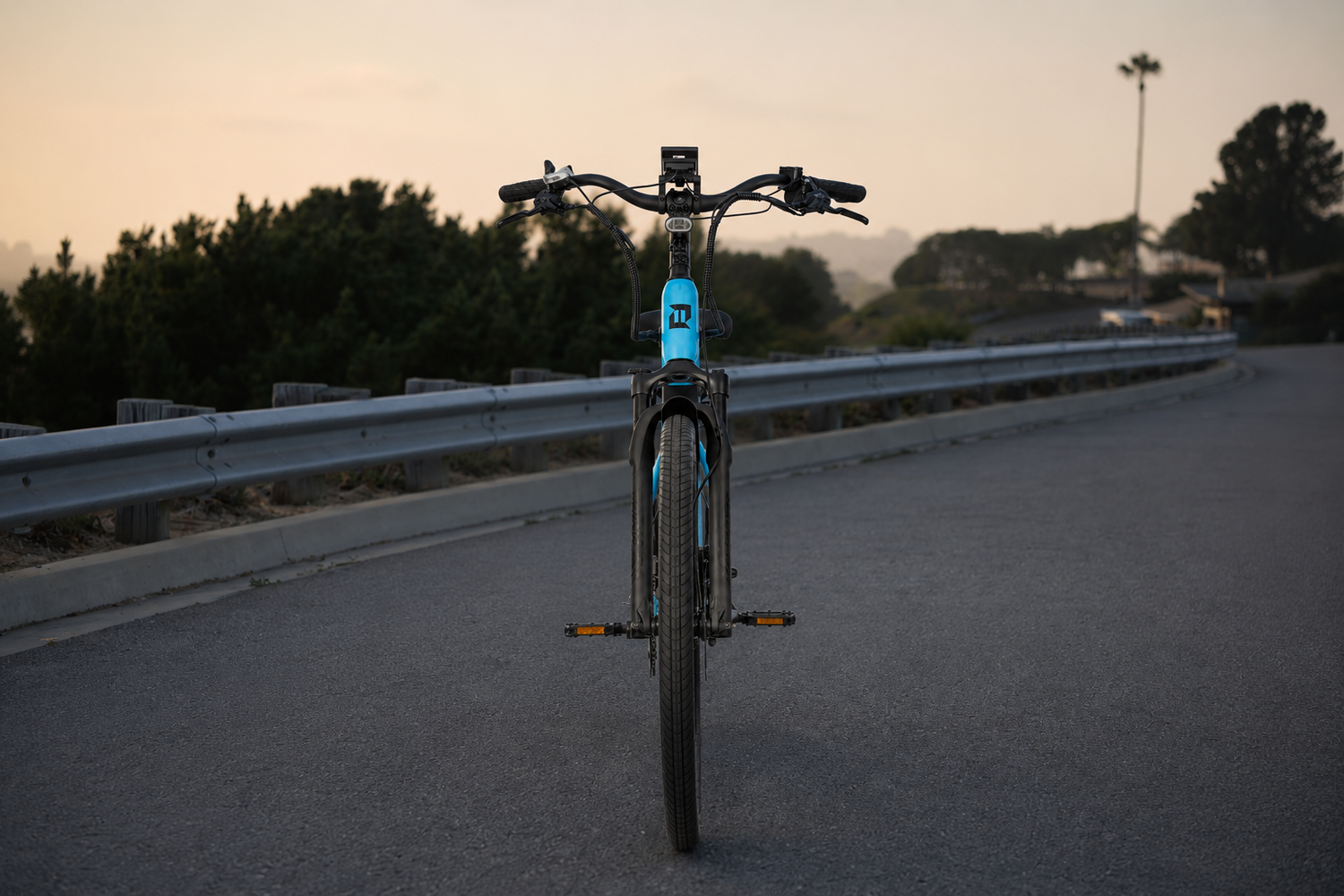

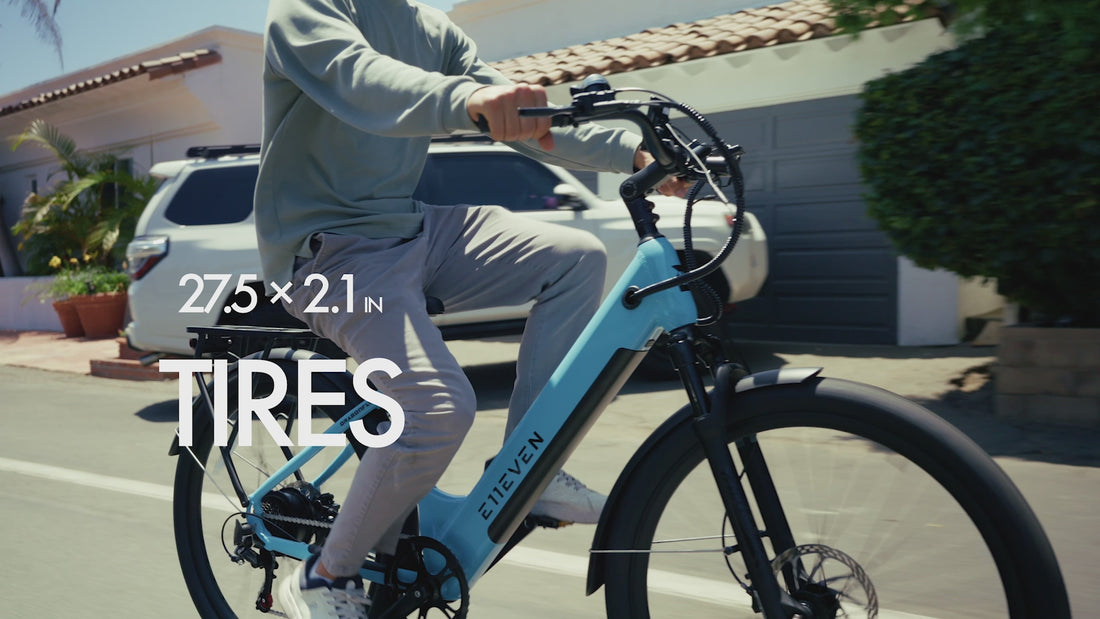

27.5"×2.1
Tires

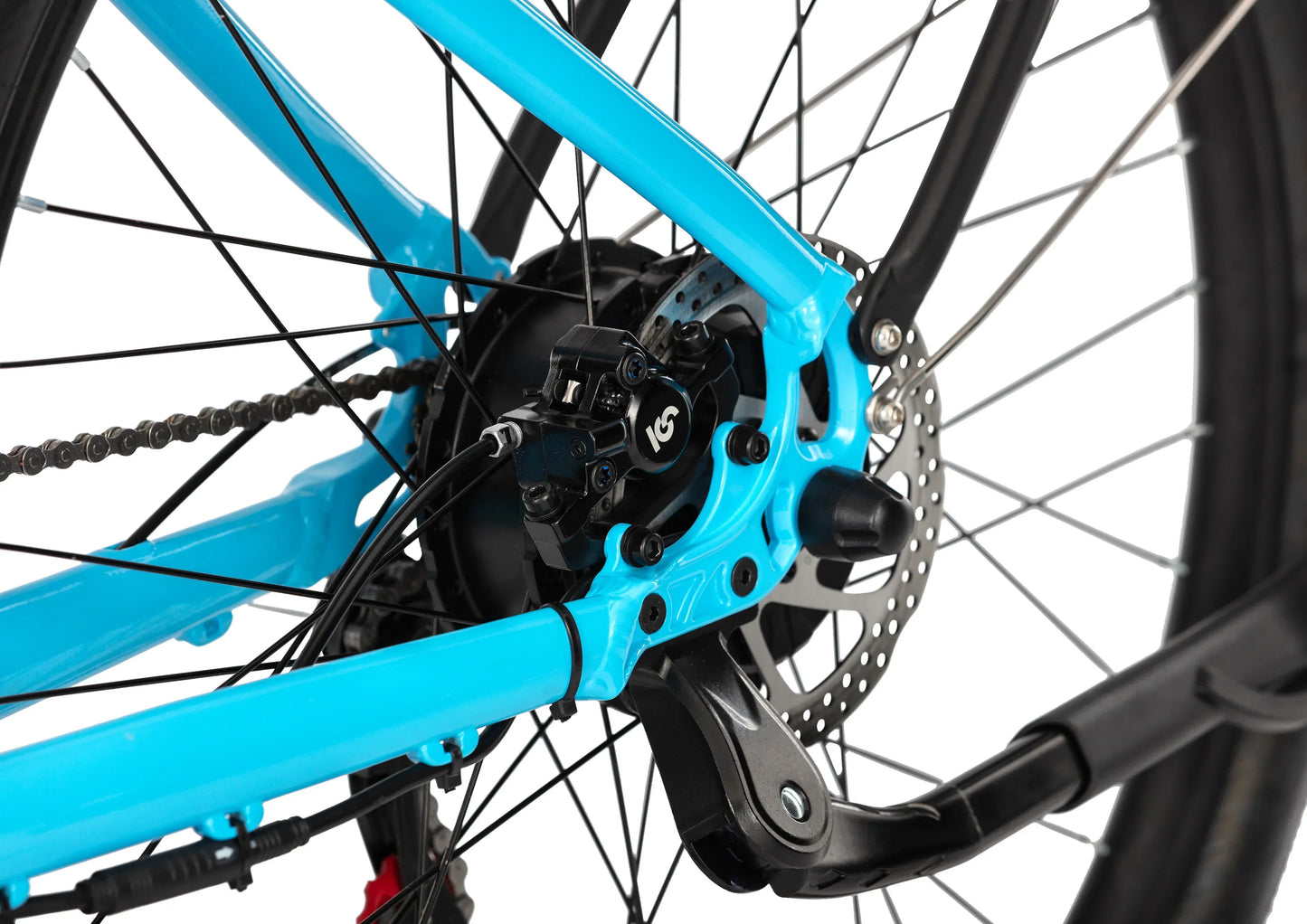

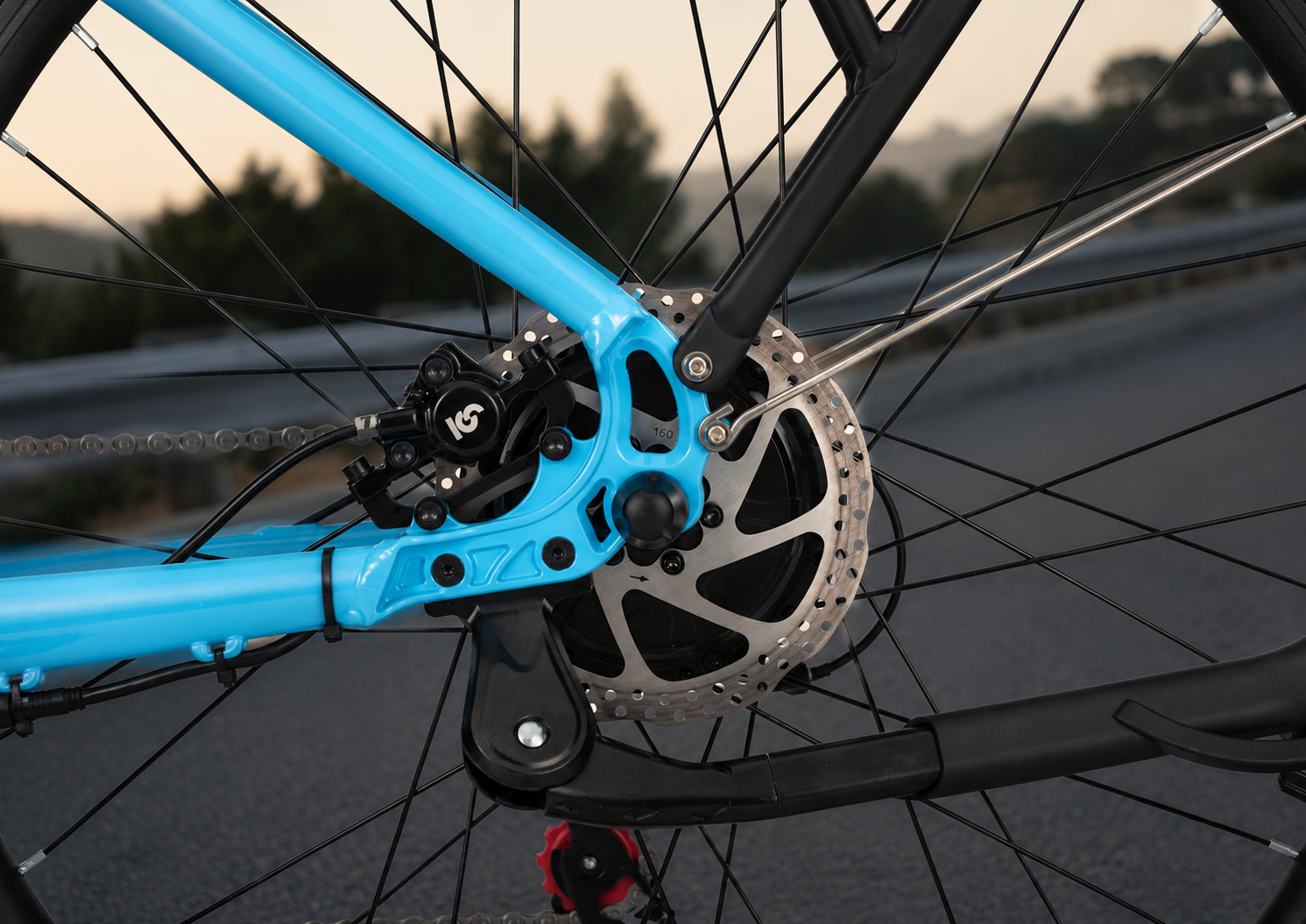

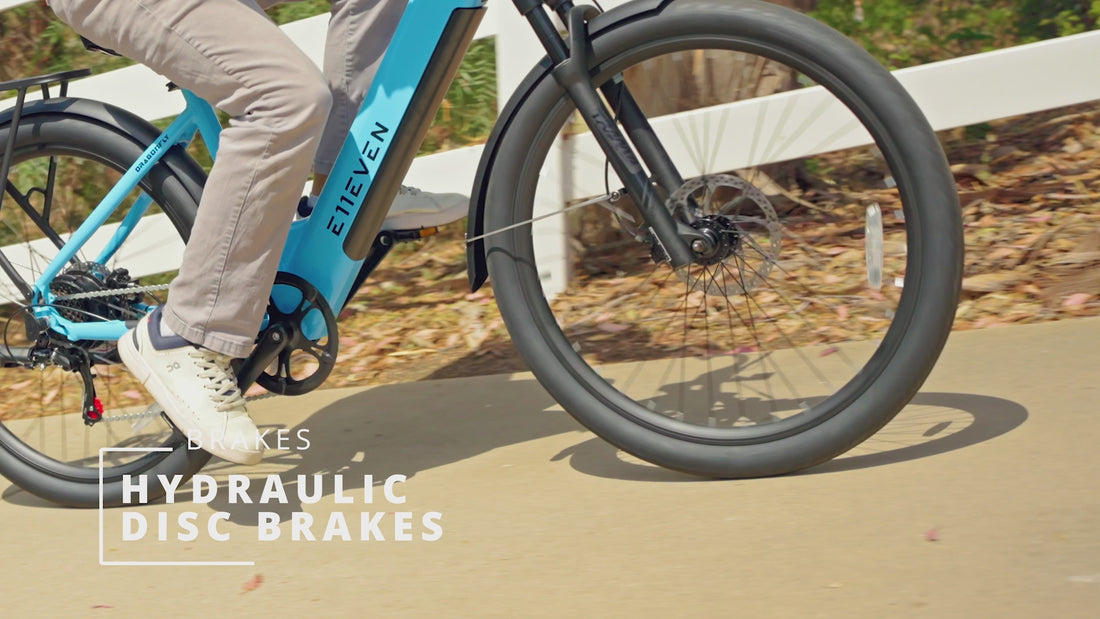

Hydraulic disc brakes
Brakes

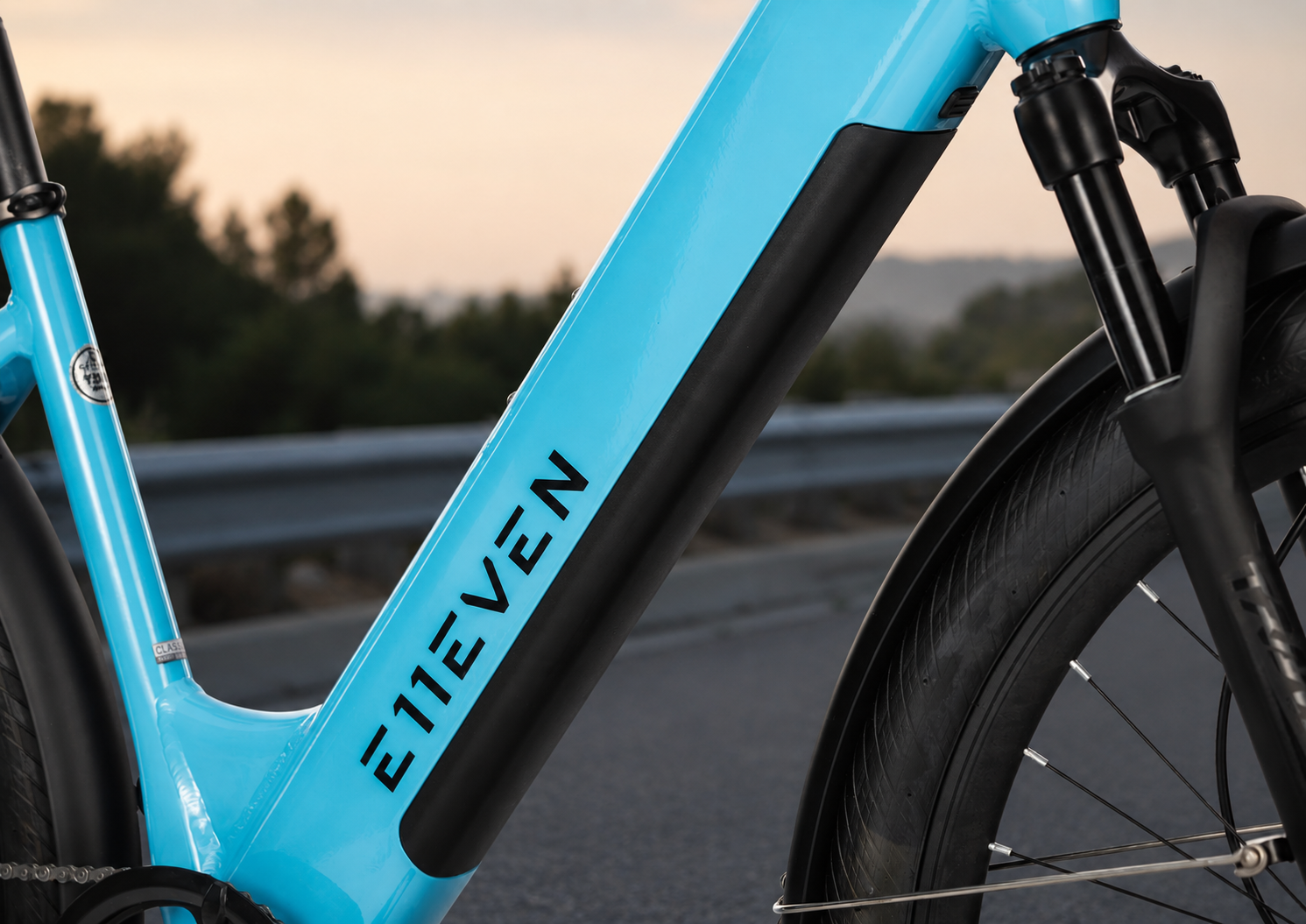

48V 10Ah
Battery
57 lbs
Net Weight

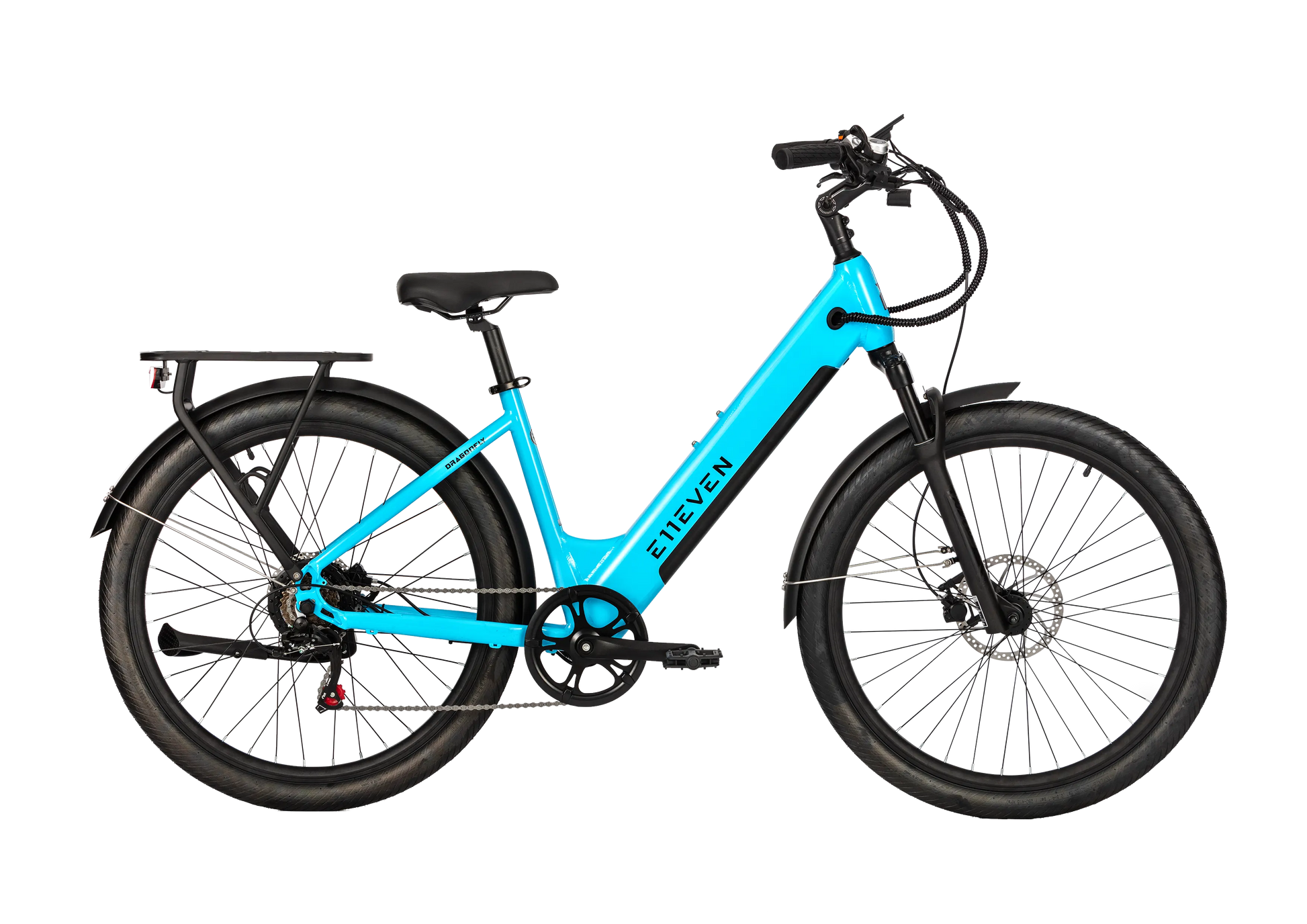

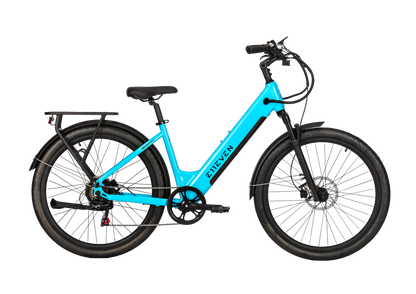

Is DRAGONFLY right for your ride?
Consider DRAGONFLY for city trips and everyday riding. Its listed weight is 57 lb, with a 350W motor and 27.5 × 2.1-inch tires.
When comparing bikes, consider how you will store and move the bike as well as how you will ride it. Review the fit and dimensions before ordering.
Two Sensors. Two Ways to Ride.
While many e-bikes offer just one sensor, Dragonfly gives you both. Switch between responsive torque assist and effortless cadence assist to ride your way.

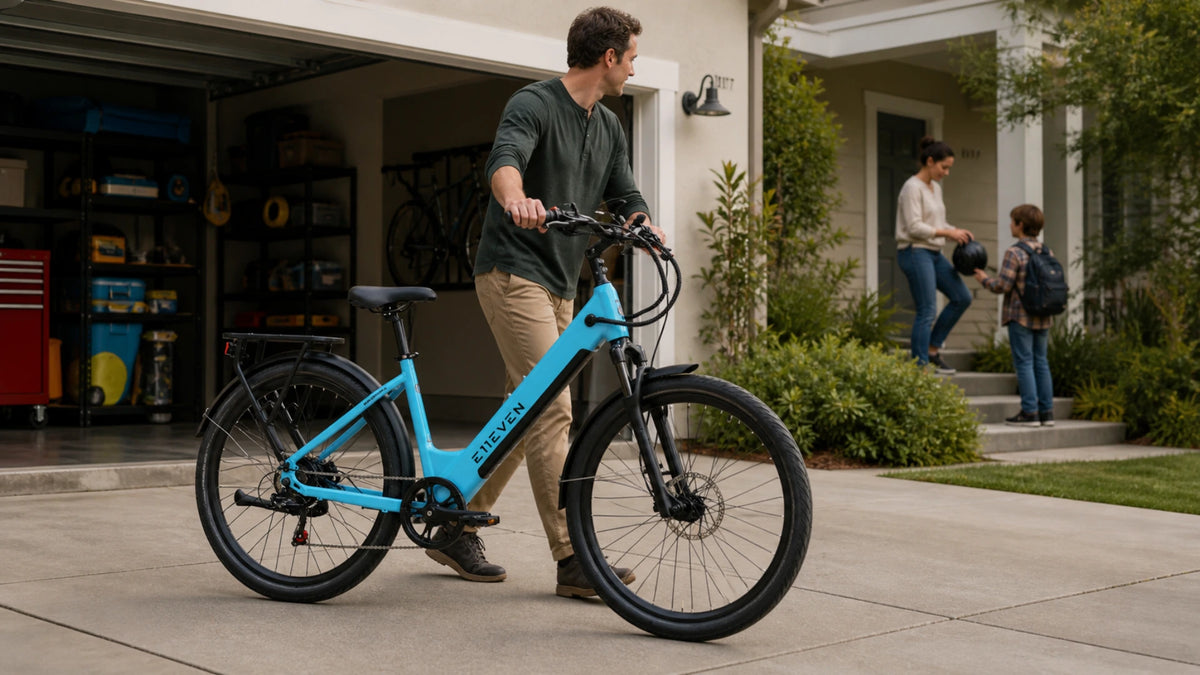

Make the Small Trips Part of Your Day
A neighborhood coffee stop, a short commute, or an evening ride with your partner. DRAGONFLY the lowest listed bike weight in E11EVEN lineup to everyday trips.
- 350W motor
- 27.5 × 2.1 in tires
- 57 lb listed bike weight

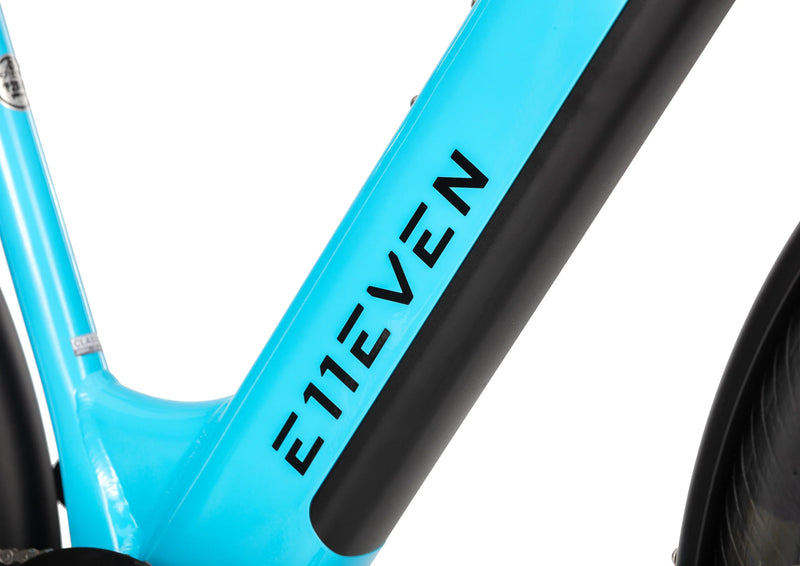

Made for Life's Many Stops
From quick errands to family outings, our low step-through frame makes getting on and off easier.
Less hassle at every stop, more freedom to ride.

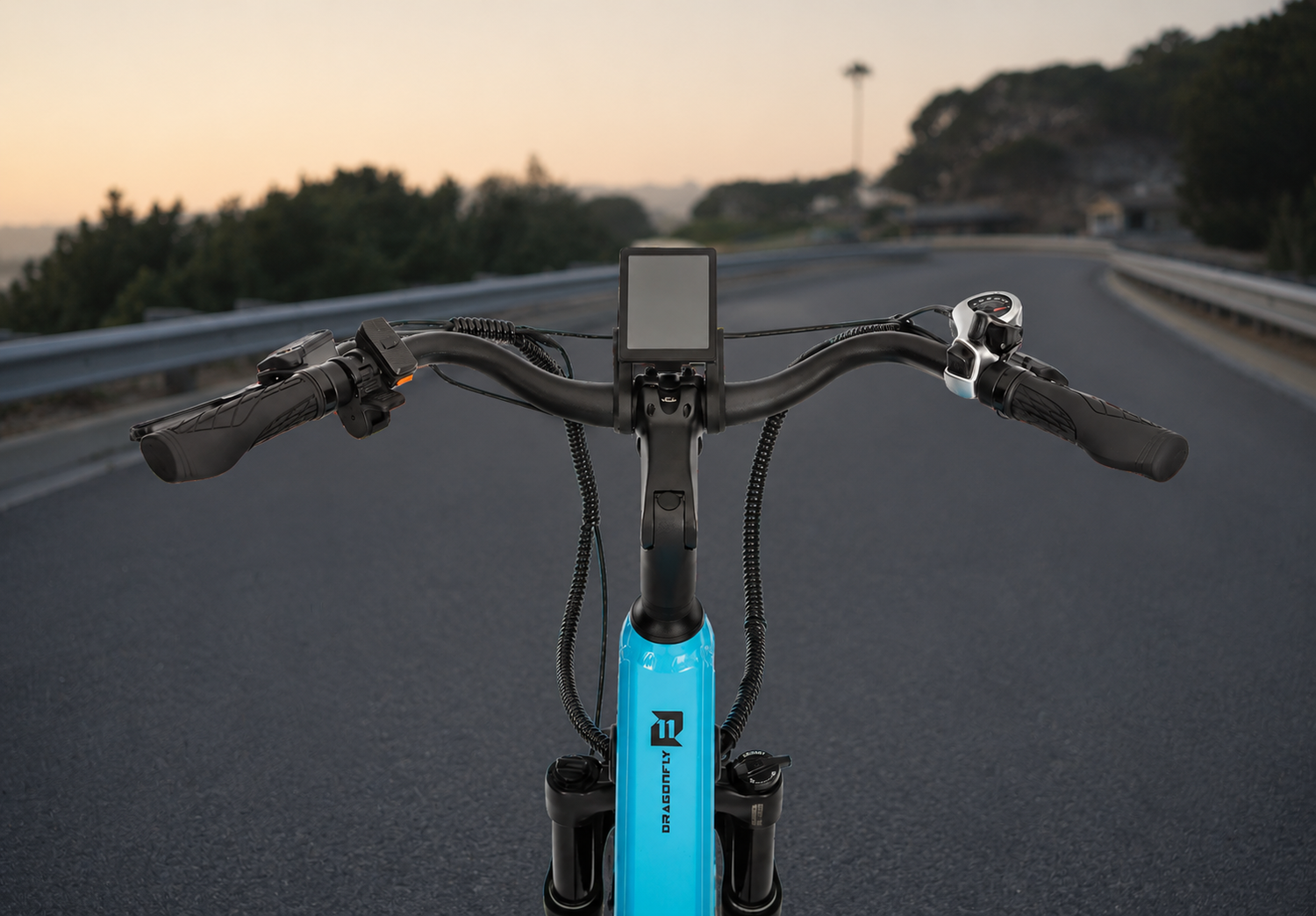

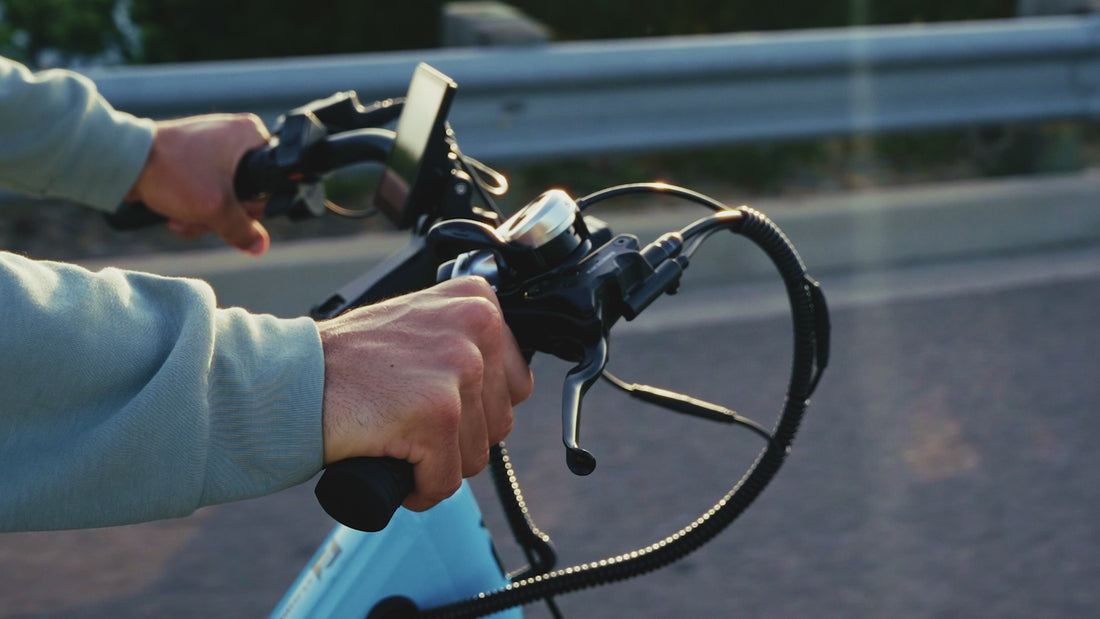

See your controls, plan your ride
Speed, battery level, and ride information at a glance. Simple controls make everyday family rides easier.
Practice starting, stopping and changing assist in an open area before joining traffic.

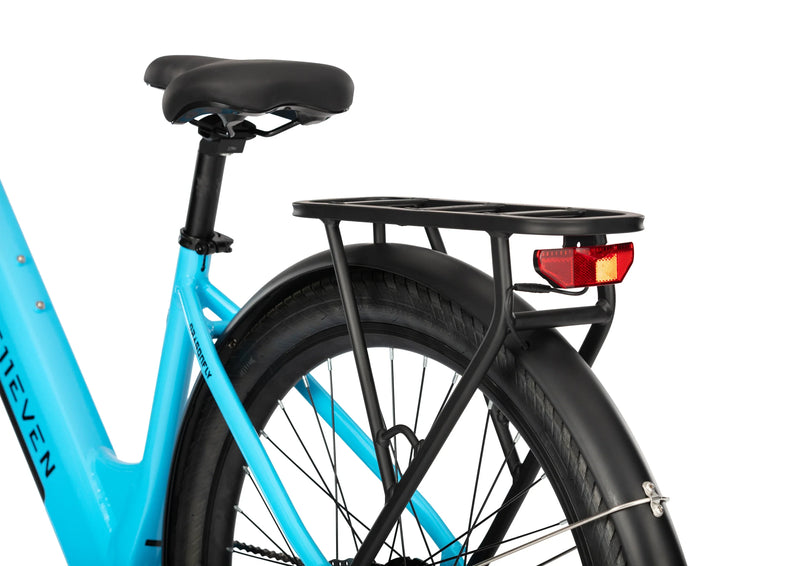

Bring your everyday essentials
The included rear rack gives you a place to secure a work bag or small essentials.
From grocery runs to weekend adventures, bring more along.
Find Your Fit
Find a comfortable position that feels right for you.
Ride with Confidence
Get familiar with your controls before your first ride.
More Miles.
More Moments.
Don’t Just Get There. Enjoy Getting There.
Every ride is an opportunity to slow down, explore your neighborhood, and enjoy the moments between destinations.
One More Ride Before Sunset.
The moments you’ll remember are never planned—they just happen when you spend more time together.
Quality Testing
Made To Last
UL Battery
Safety First
Customer Support
Here When You Need Us
Warranty
Built To Support You
Weather Protection
IPX6 Ready For Everyday Life
More Ways To Ride Together
Weekend Escapes
Family Fleet
Scenic Rides
Daily Errands
Full specifications
Discover Details
General information
| Model | DRAGONFLY |
|---|---|
| Maximum payload | 300 lbs |
| Net weight | 57 lbs |
| E-bike class | Class 2 |
Electrical system

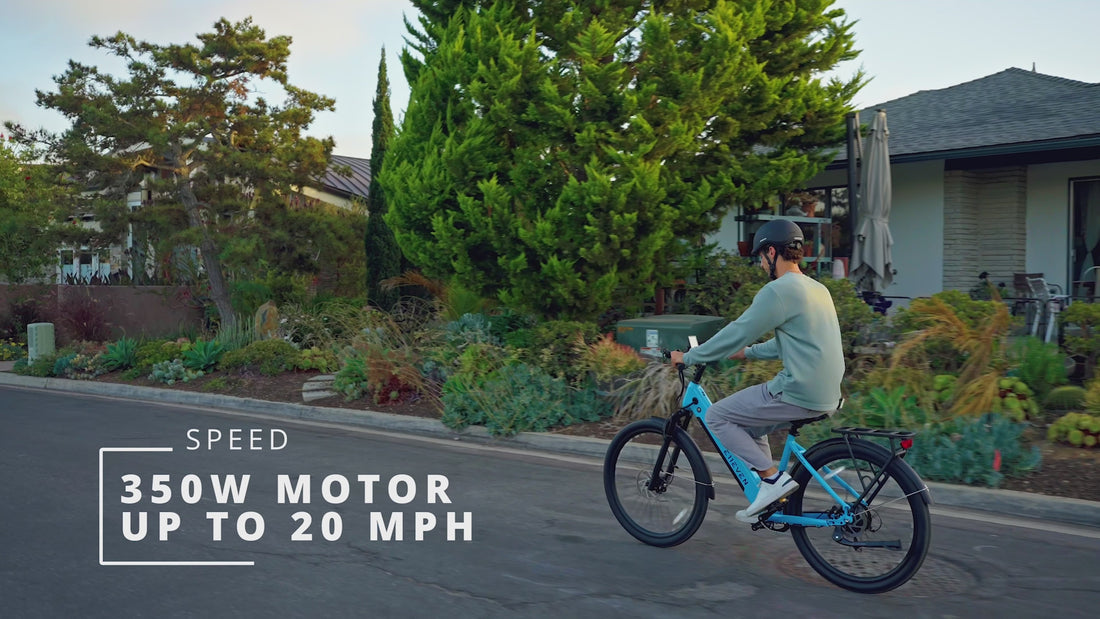

| Motor | 350 W |
|---|---|
| Maximum torque | 52 Nm |
| Top speed | 20 mph |
| Battery | 48 V 10 Ah |
| Charger | 54.6 V, 3 A |
| Range (up to) | 55 mi |
| Throttle speed | Up to 20 mph |
| Pedal assist speed | Up to 20 mph |
| Speed limit | Up to 20 mph |
Frame & suspension
| Frame material | Aluminum Alloy |
|---|---|
| Suspension | 60 mm Front Suspension Fork |
Wheels & tires
| Tires | 27.5 in × 2.1 in |
|---|
Braking & drivetrain
| Brakes | Hydraulic disc brakes |
|---|---|

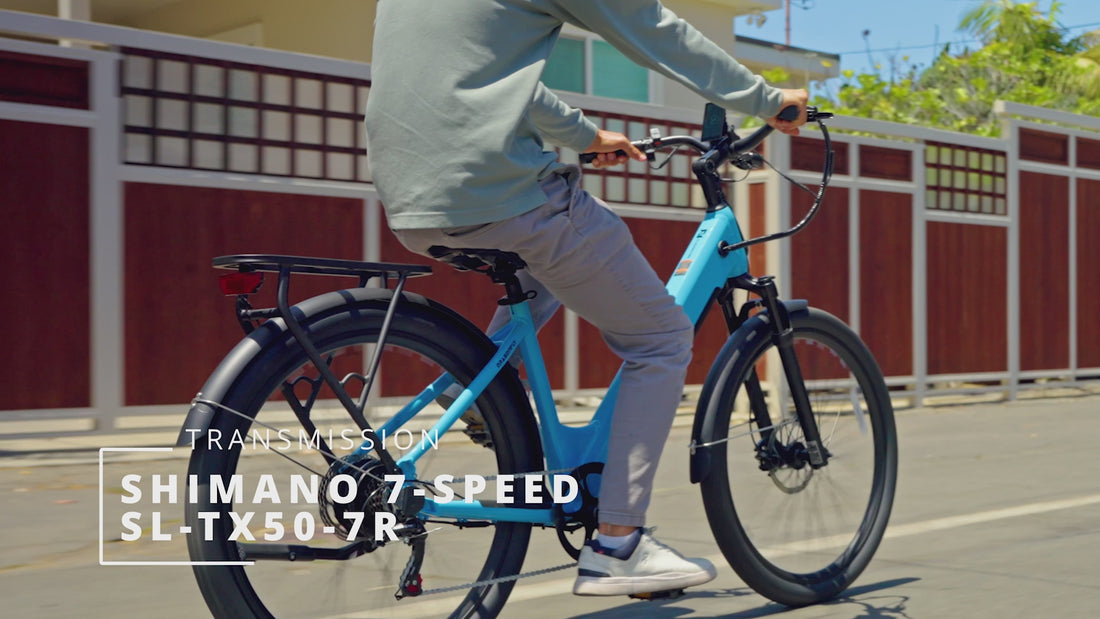

| Drivetrain | 7-Speed Drivetrain |
Cockpit & accessories
| Rear rack | Included |
|---|---|
| Display | LED Display |
Safety & certification
Tested by ACT TEST LAB for compliance with UL 2849 for the e-bike electrical system and UL 2271 for the lithium-ion battery.
Additional details
- FRAME TYPE Step-Thru
- WHEEL SIZE 27.5"
- SEAT Adjustable Seat Height
Recommended rider height
160–180 cm≈ 5′3″–5′11″
| Frame type | Step-Thru |
|---|---|
| Frame size | Medium / 17 in |
| Wheel size | 27.5 × 2.1 in |

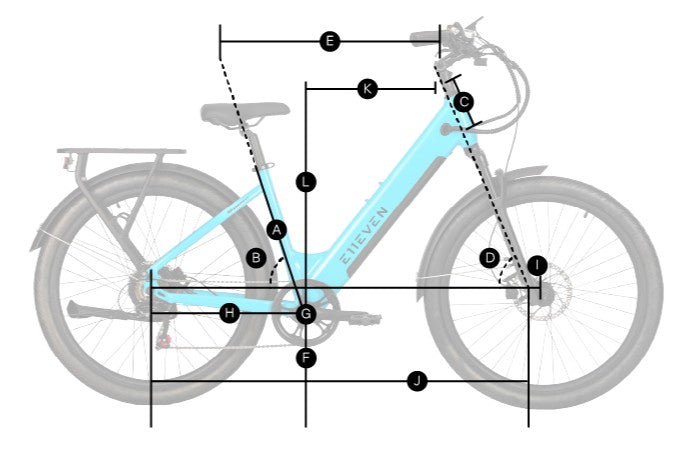

| A — Seat tube length | 445 mm ≈ 17.52 in |
| B — Seat tube angle | 72.5° |
| C — Head tube length | 150 mm ≈ 5.91 in |
| D — Head tube angle | 68° |
| E — Effective top tube length | 625 mm ≈ 24.61 in |
| F — Bottom bracket height | 291 mm ≈ 11.46 in |
| G — Bottom bracket drop | 60 mm ≈ 2.36 in |
| H — Chainstay length | 455 mm ≈ 17.91 in |
| I — Fork offset | 42 mm ≈ 1.65 in |
| J — Wheelbase | 1153 mm ≈ 45.39 in |
| K — Frame reach | 426 mm ≈ 16.77 in |
| L — Frame stack | 631 mm ≈ 24.84 in |
| Fork travel | 60 mm ≈ 2.36 in |
| Fork height | 480 mm ≈ 18.9 in |
Fit depends on height, inseam and reach. Imperial lengths are rounded conversions of the original metric measurements.
What's In the Box
DRAGONFLY is ideal for:
- Neighborhood rides
- Bike paths
- Daily commuting
- Weekend leisure rides
Its lightweight design provides responsive handling and a comfortable riding experience.
Start somewhere quiet and familiar, away from traffic.
Begin with a low pedal-assist level, practice braking and shifting gears, and gradually get used to the electric assistance before trying the throttle.
DRAGONFLY's step-thru frame and straightforward controls make it an approachable choice for first-time e-bike riders. There's no need to rush your first ride.
DRAGONFLY weighs 57 lbs, making it the lightest electric bike in the E11EVEN lineup.
Its lighter design can make everyday handling more manageable when parking, moving through storage areas, or positioning the bike at home.
However, DRAGONFLY is a full-size, non-folding electric bike. If you need to carry it upstairs or store it in a tight space, consider the bike's dimensions and weight before ordering.
You can explore E11EVEN electric bikes through our growing U.S. dealer network.
We currently have 7 independent dealer locations across:
- California: Alpine and Walnut
- Colorado: Denver
- Ohio: Coldwater, Charm, Kettering, and Columbus
Visit our Dealer Locations Page to find addresses and contact details. Please check DRAGONFLY availability and test ride options with the dealer before visiting.
Our official E11EVEN distribution center is located at 2485 Coral Street, Vista, CA 92081, USA. Visits or test rides at this location must be confirmed in advance.

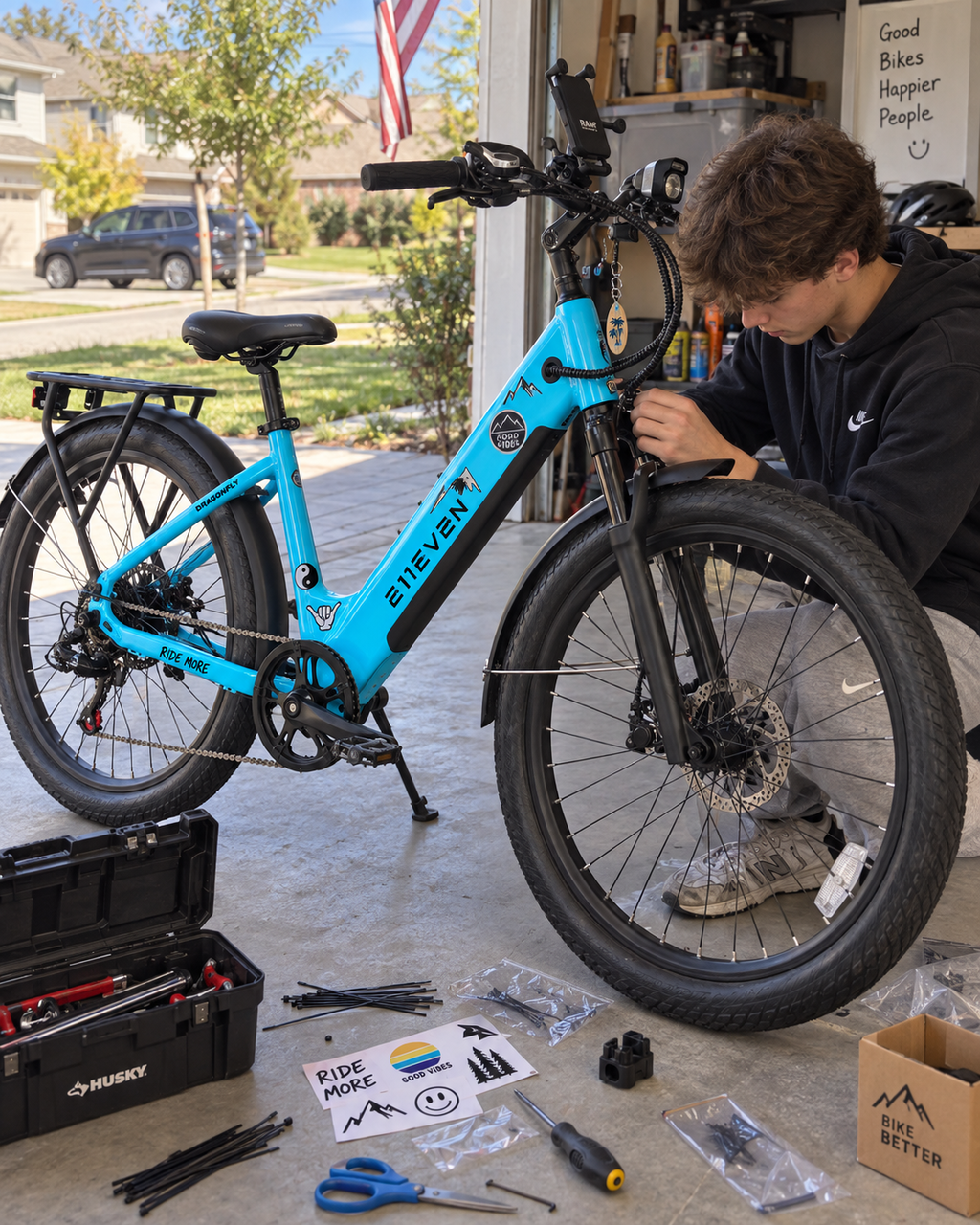

New to e-bike assembly? We're here to help.
Our team can provide guidance on setting up your DRAGONFLY and checking important components before your first ride.
If you need model-specific assembly instructions or have questions during setup, email marketing@e11evenbike.com.
You can also contact a nearby E11EVEN dealer to ask about local assembly assistance and service availability.
Regular maintenance helps keep your DRAGONFLY ready for everyday commuting.
E11EVEN has a network of independent bike dealers across California, Colorado, and Ohio. Depending on your location and the services offered, a participating dealer may be able to help with inspections, maintenance, and repairs.
For eligible manufacturing defects, DRAGONFLY is backed by E11EVEN's limited warranty for up to 2 years or 5,000 miles, whichever comes first.
Explore our Dealer Network or read our Warranty Policy to learn more.
We understand that choosing your first electric bike is a big decision.
E11EVEN offers a 15-day return window for eligible e-bikes. For non-defective returns, the bike must have fewer than 10 miles on the odometer, show no signs of use or wear, and be returned in its original packaging.
Return shipping fees of $150–$350 normally apply. Additional packaging-related charges may apply if the original packaging is not used.
Please review our Return Policy and obtain return authorization before sending your bike back.
