500WMotor -
28MphSpeed -
70MilesRange -
300lbsMax Load
Carry More. Enjoy More.
Designed for the way families live, WINGMAN combines everyday comfort with practical features that help you carry more, explore more, and enjoy every ride.

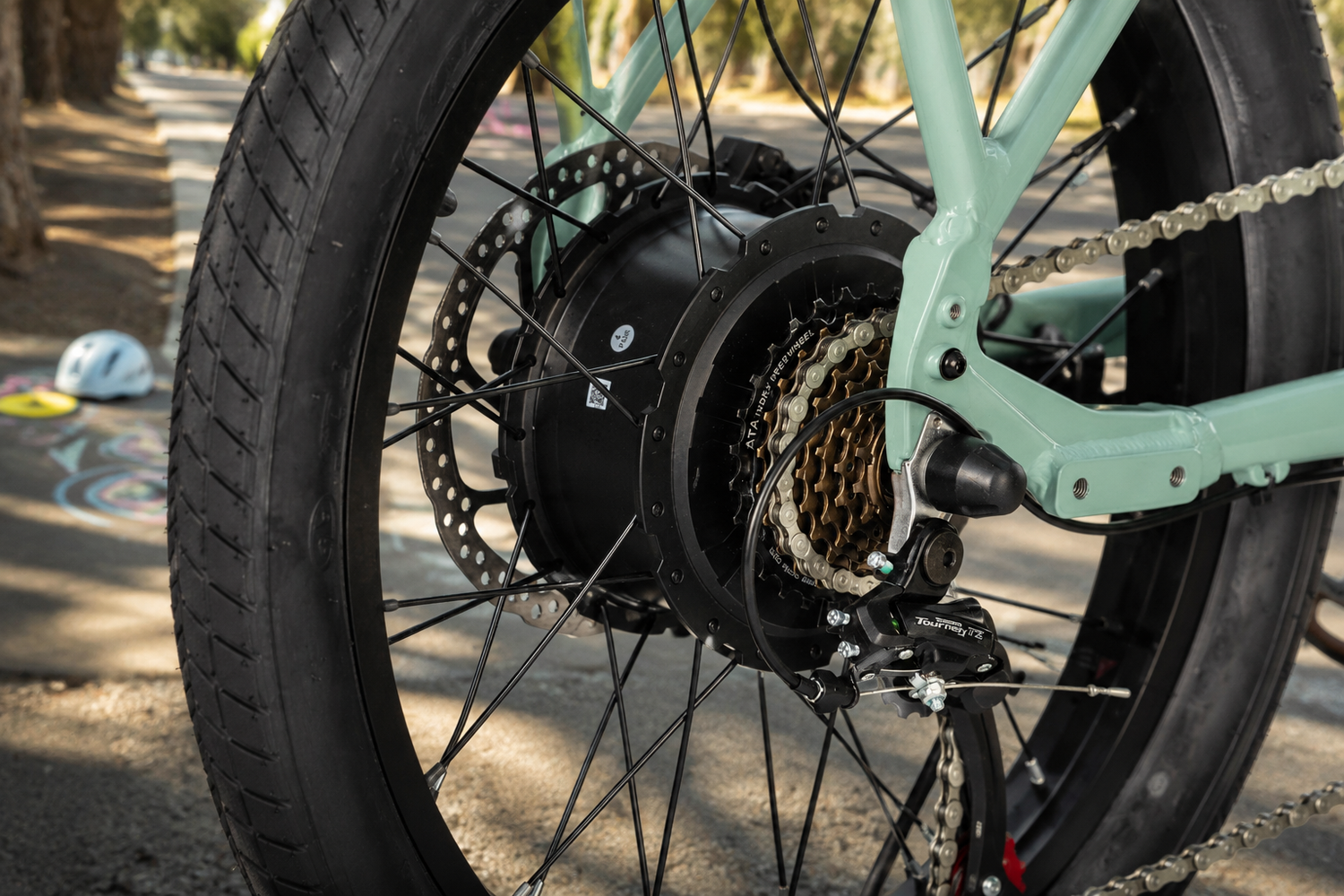

500W
Motor

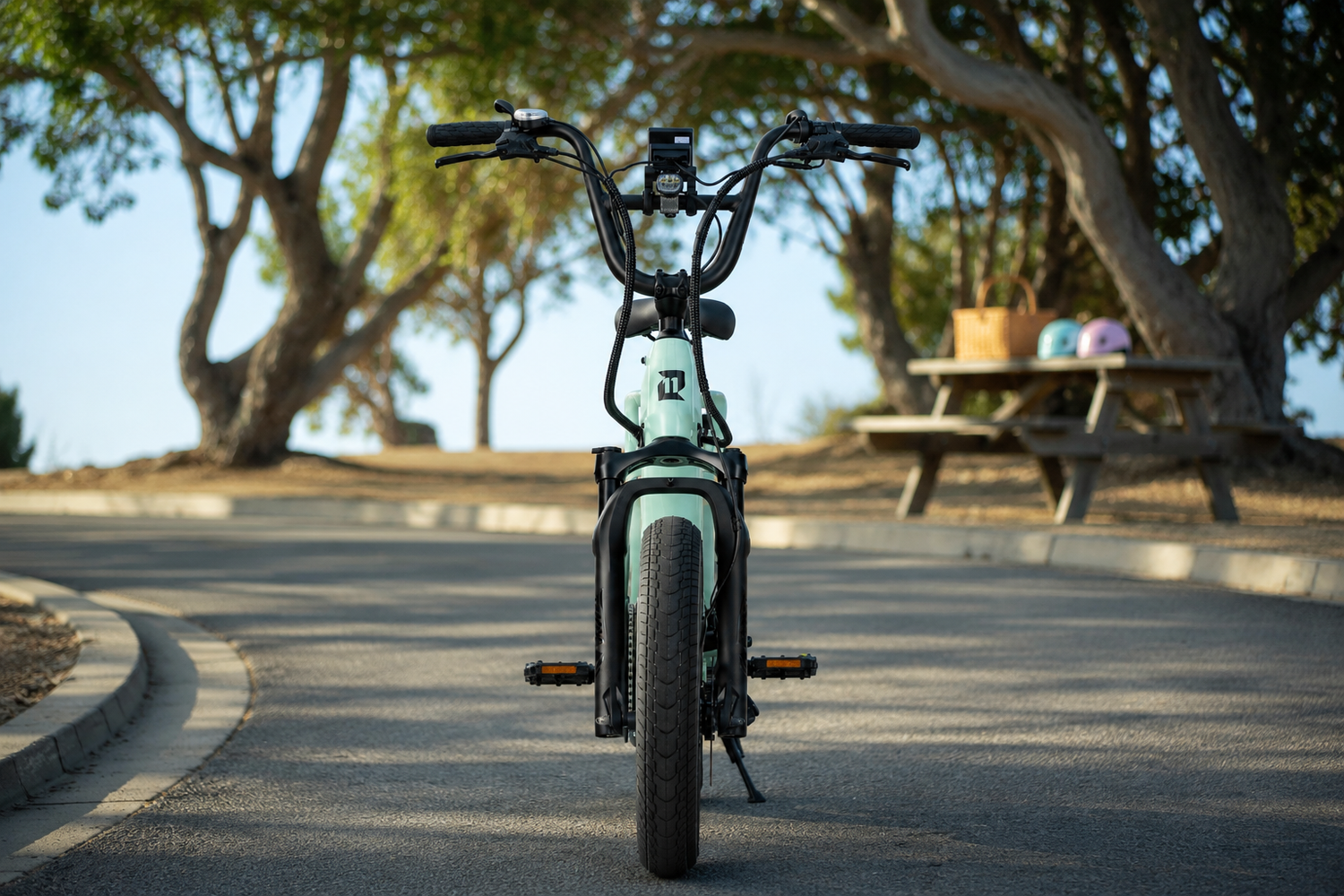

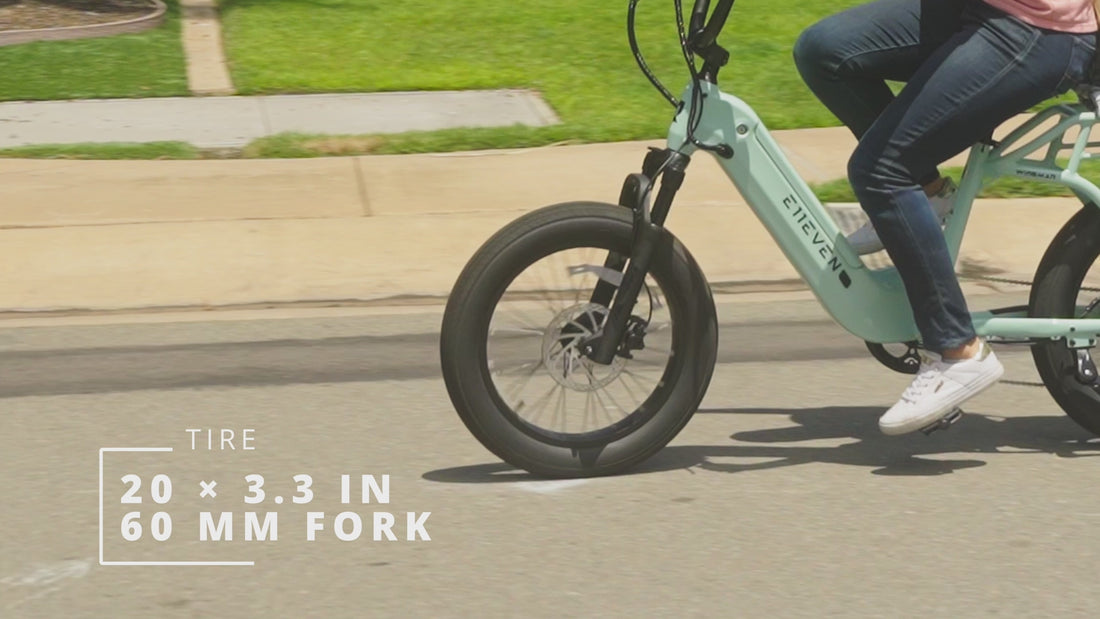

20" × 3.3" Anti-Puncture
Fat Tires

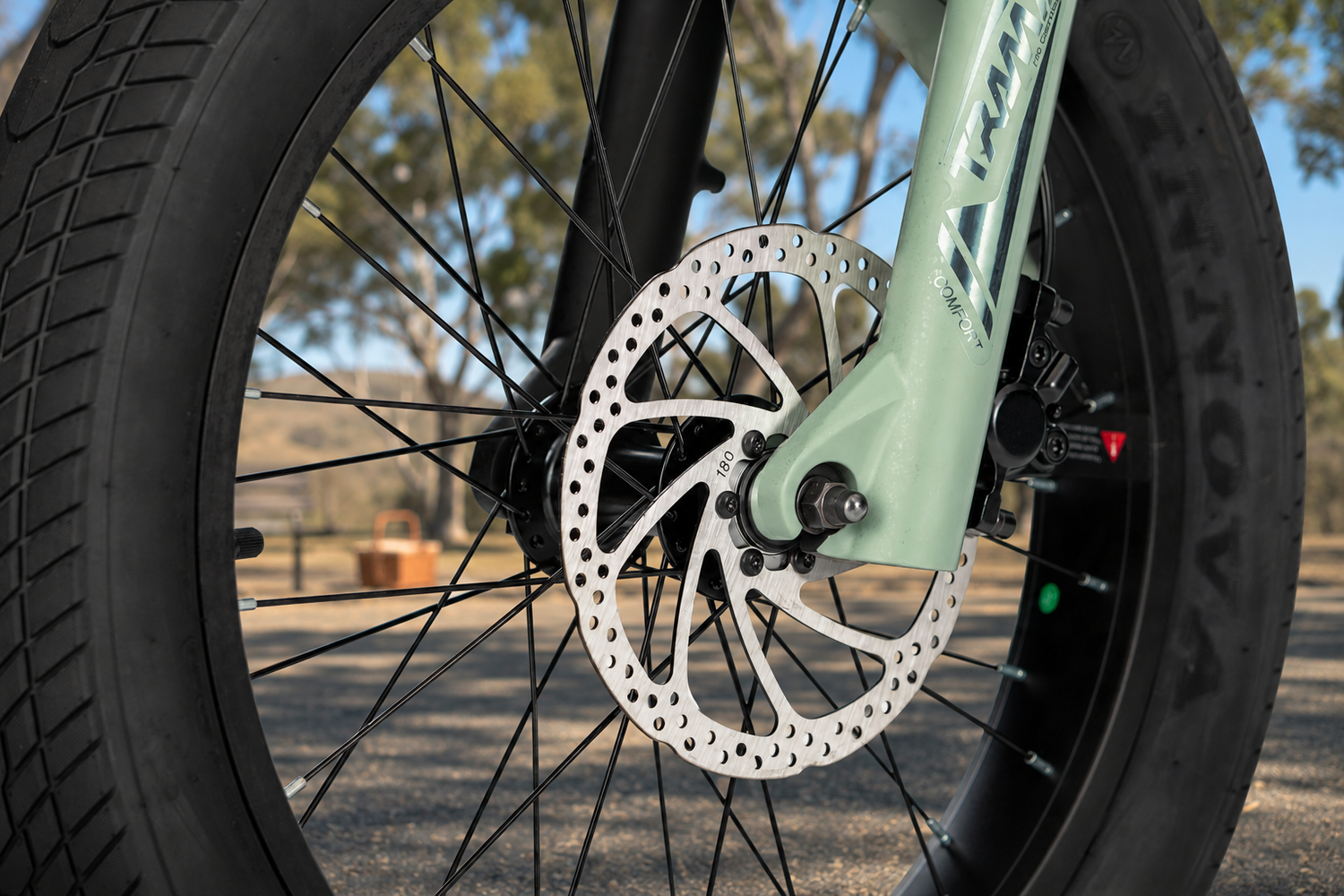

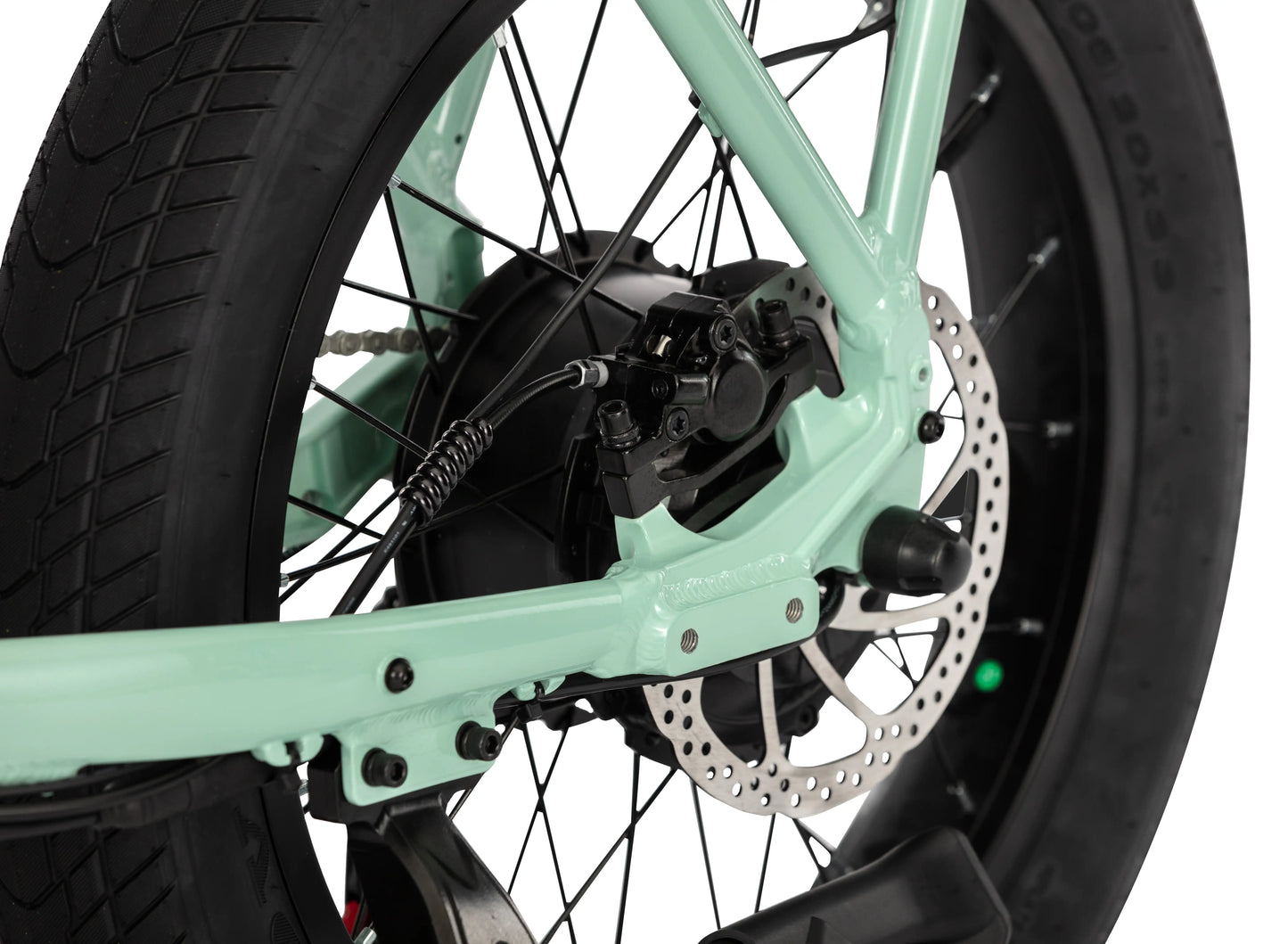

Hydraulic disc brakes
Brakes
48V 15Ah
Battery
75 lbs
Net Weight

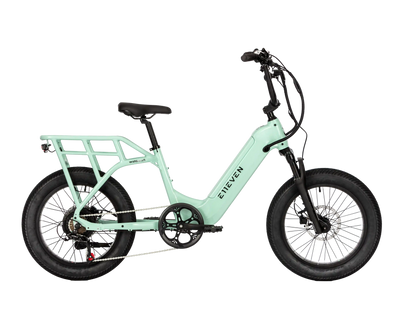

Is WINGMAN right for your ride?
Consider WINGMAN for commuting and everyday errands. It combines a step-thru frame, a 500W motor and 20 × 3.3-inch tires in a utility-focused design.
Check both the total load limit and the separate rear-rack limit before carrying cargo. Rack capacity alone does not establish compatibility with a passenger seat.
Two Sensors. Two Ways to Ride.
While many e-bikes offer just one sensor, Wingman gives you both. Switch between responsive torque assist and effortless cadence assist to ride your way.
Make Room for Everyday Life

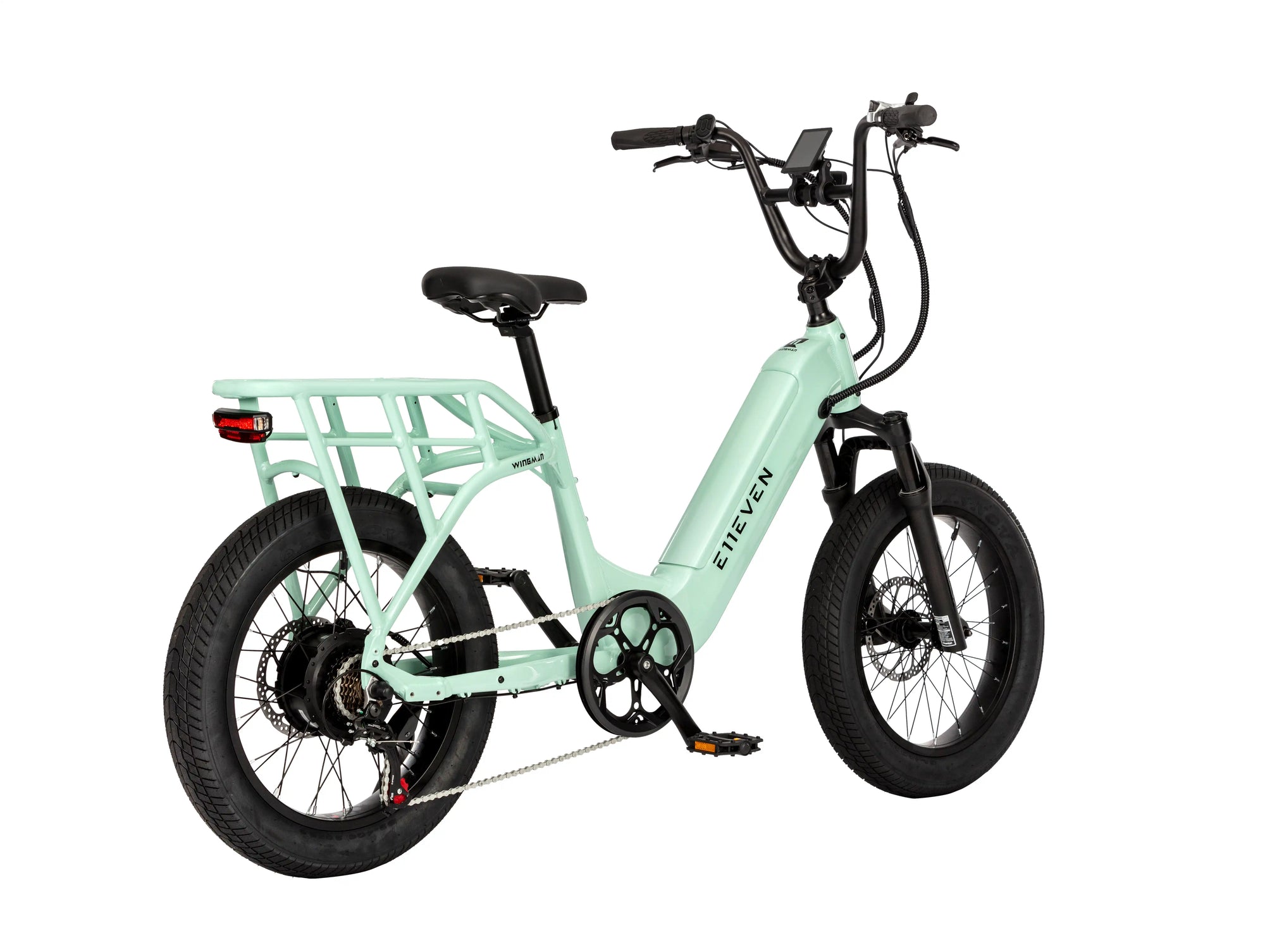

Groceries on the way home. Picnic supplies for a weekend together. WINGMAN pairs a step-thru frame, 20 × 3.3-inch tires and an included rear rack for practical daily rides.
- 500W motor
- 20 × 3.3 in tires
- 75 lb listed bike weight

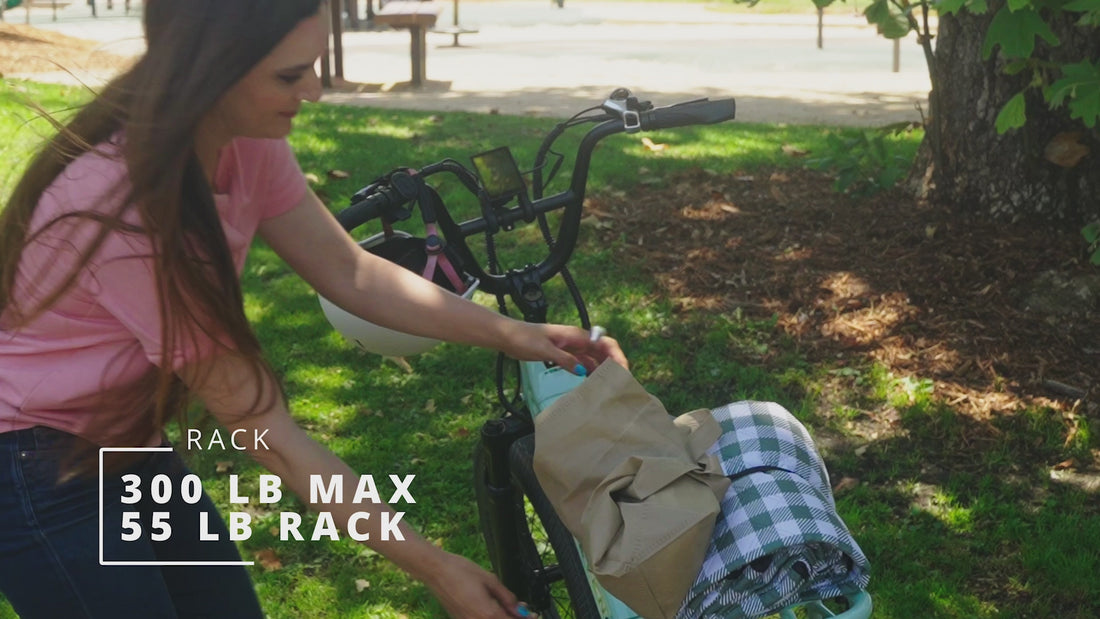

A place for the daily load
The included rear rack is rated for up to 55 lb, for securely attached groceries or everyday gear.
300 lb total payload and 55 lb rack capacity are separate limits. Cargo only; child-seat and passenger compatibility are not confirmed.
Step on at the next stop

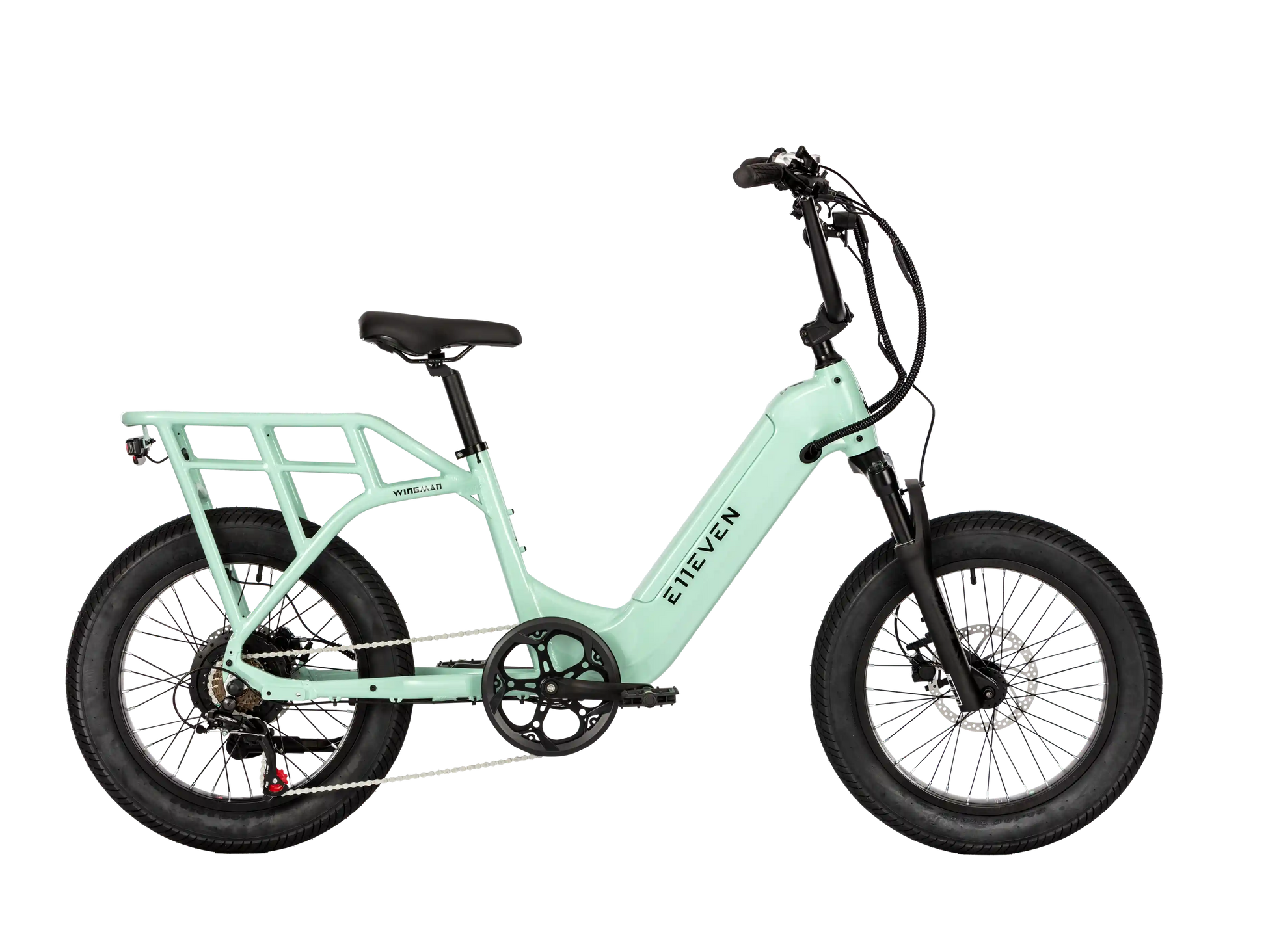

The step-thru frame creates a lower opening for getting on and off while running errands.
Always stop and stabilize the bike before loading. Ask us to check rider fit and accessory compatibility.

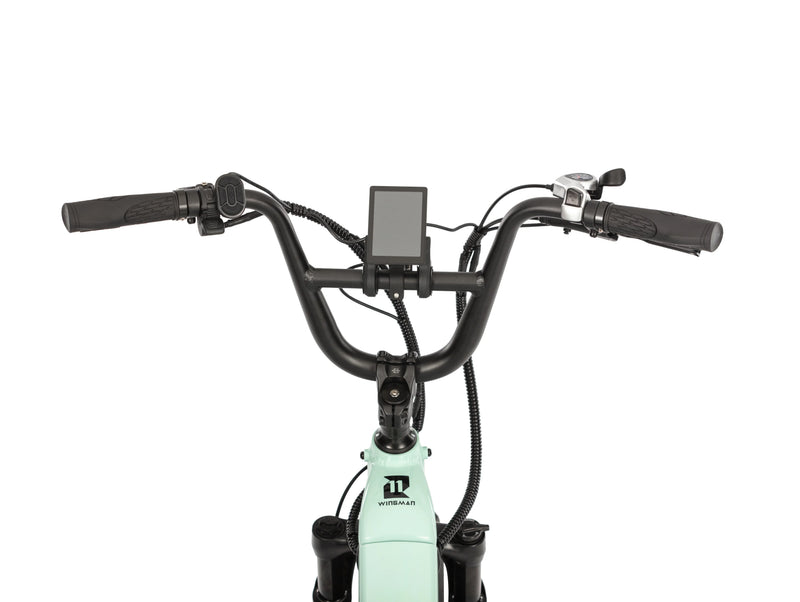

Know the cockpit before you go

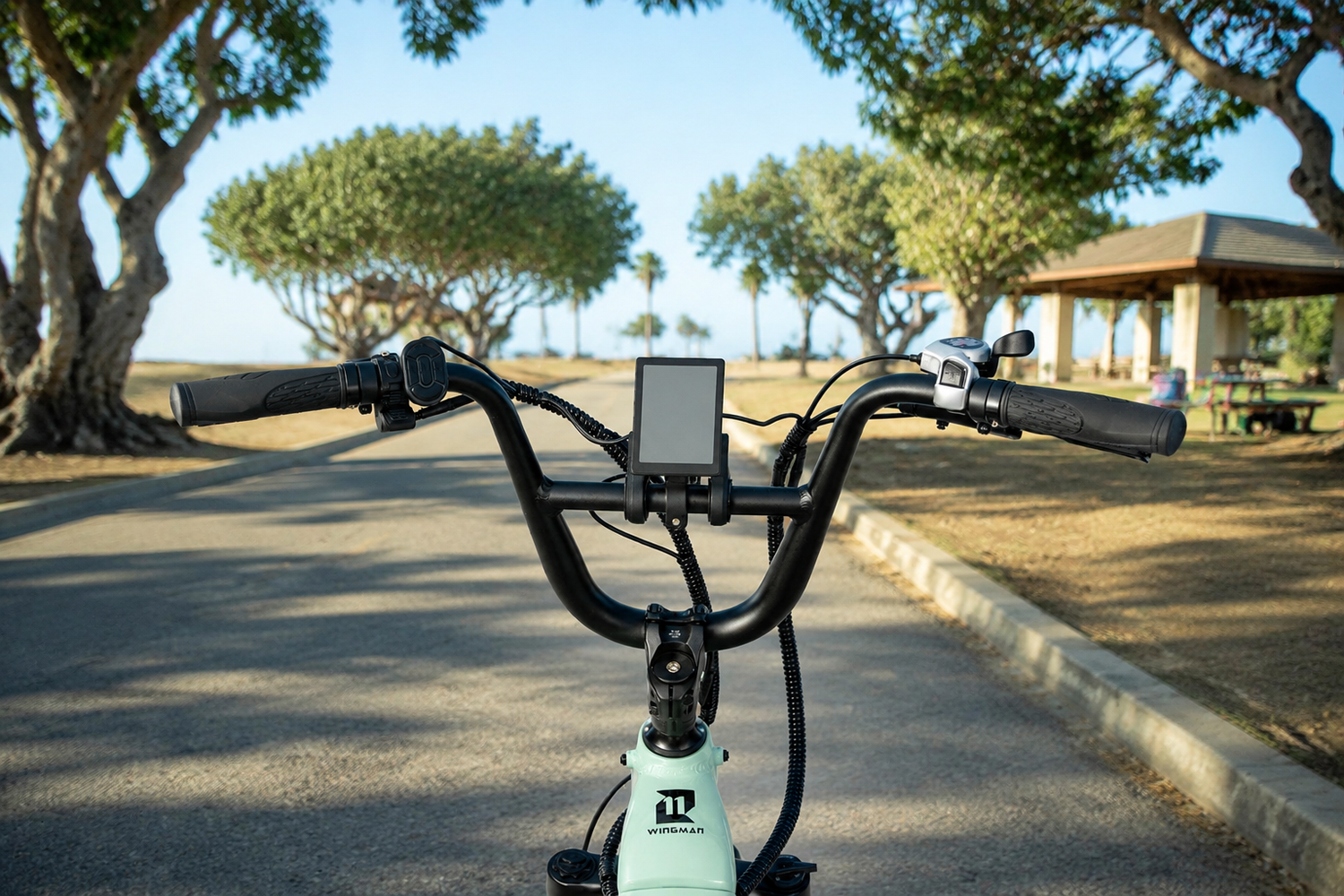

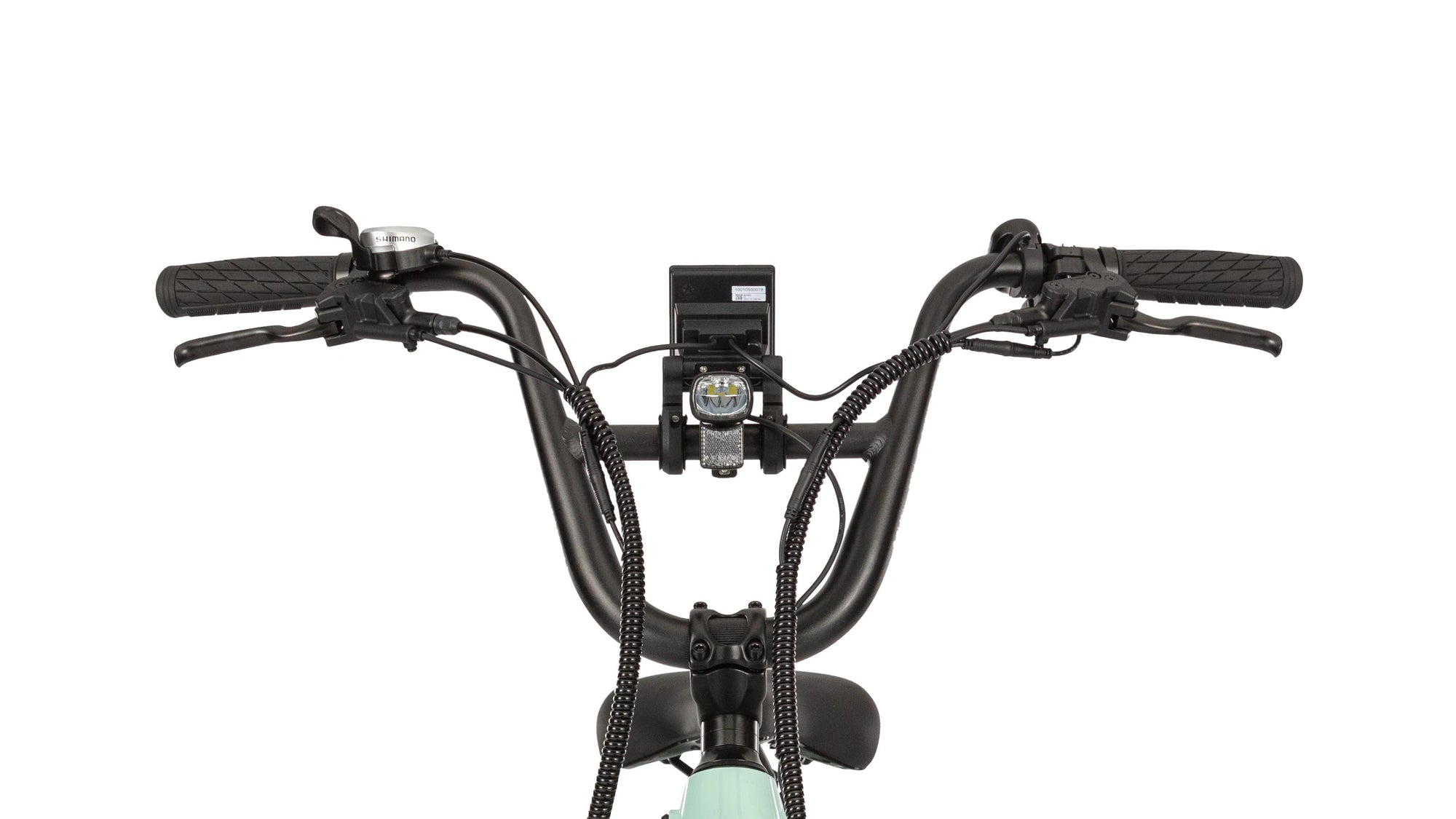

The handlebar-mounted display and controls keep ride information within view on your daily route.
Practice starting, stopping and changing assistance before carrying a load.
Make room for your ride
WINGMAN uses 20-inch wheels and has a listed bike weight of 75 lb. Wheel size alone does not tell you the bike’s full footprint. Check parking space, doorways and any vehicle carrier before ordering.
Choose for your own height, inseam, reach and stopping stance. Contact our team for model-specific fit advice.
Get ready for the everyday ride
Learn the display, assist controls and brakes in an open area before your first trip. Follow your model’s instructions for starting and stopping.
Battery: 48V 15Ah. Charger specification: 54.6V, 2A. Use the charger specified for this model and follow the manual’s charging and storage instructions. Ask our team before choosing a replacement charger.
Made For Everyday Moments.
Made For The Moments In Between.
The best rides are often the ones that become part of your everyday life. WINGMAN helps you spend less time in the car and more time enjoying the people and places around you.
Everyday Rides. Meaningful Moments.
Whether it's a quick trip around the neighborhood or an unplanned ride together, WINGMAN helps turn everyday moments into memories you'll appreciate.
Quality Testing
Made To Last
UL Battery
Safety First
Customer Support
Here When You Need Us
Warranty
Built To Support You
Weather Protection
IPX6 Ready For Everyday Life
FRAME MATERIAL Aluminum Alloy
BRAKE TYPE Hydraulic Disc Brakes
SUSPENSION 60mm Front Suspension Fork
TIRE 20" × 3.3 Anti-Puncture Tires
REAR RACK 55 lbs
MAX LOAD 300 lbs

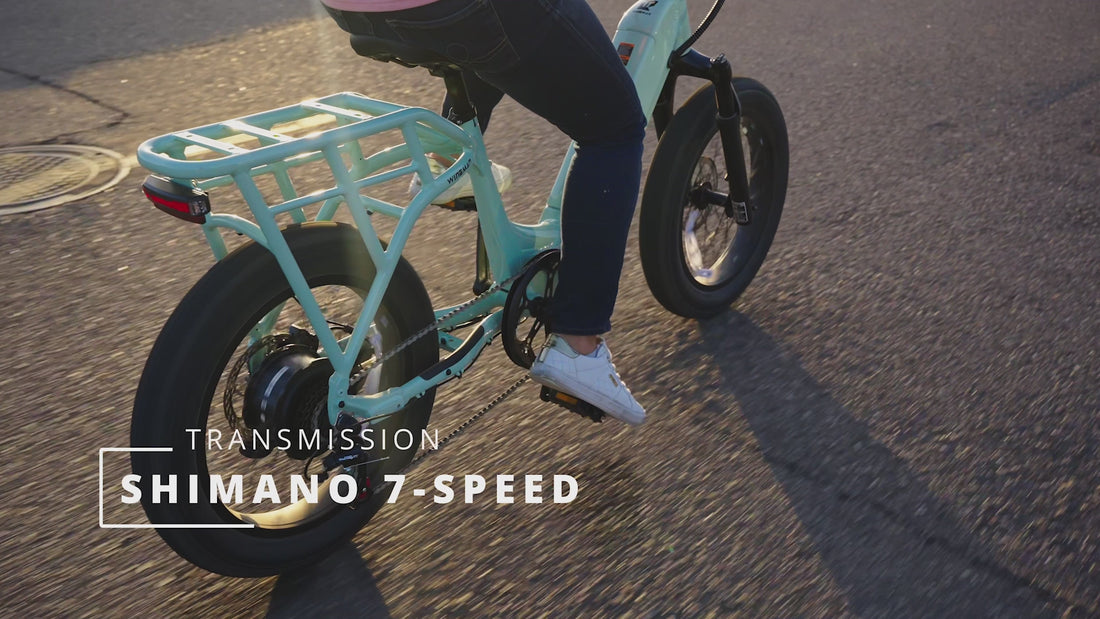

DRIVETRAIN 7-Speed Drivetrain
NET WEIGHT 75 lbs
MOTOR 500 W
MAX TORQUE 70 N·m
TOP SPEED 28 MPH
BATTERY CAPACITY 48V 15Ah
CHARGER 54.6V, 2A
RIDING RANGE Up to 70 Miles
DISPLAY LED Display
E BIKE CLASS Class 2 Mode Available
THROTTLE SPEED Up to 20 MPH
PEDAL ASSIST Up to 28 MPH
SPEED LIMIT Adjustable to 20 MPH

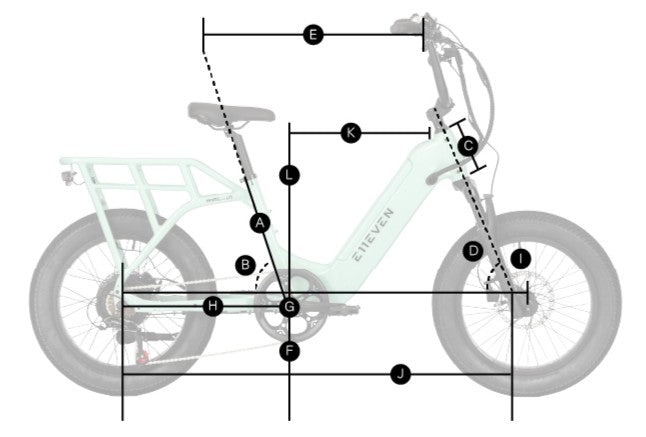

| Frame size | Small / 15 in |
|---|---|
| Wheel size | 20 × 3.3 in |
| A — Seat tube length | 406 |
| B — Seat tube angle | 72.8° |
| C — Head tube length | 150 |
| D — Head tube angle | 69° |
| E — Effective top tube length | 620 |
| F — Bottom bracket height | 287 |
| G — Bottom bracket drop | 0 |
| H — Chainstay length | 505 |
| I — Fork offset | 46 |
| J — Wheelbase | 1205 |
| K — Frame reach | 450 |
| L — Frame stack | 523 |
| Fork travel | 60 |
| Fork height | 425 |
Lengths are in mm and angles in degrees (°), unless marked in inches (in).
Know what comes next
A little planning for fit, delivery and setup makes it easier to bring riding into your routine. These summaries link to the full details.
Delivery to your door
Free e-bike shipping to residential addresses in the contiguous 48 U.S. states. Orders typically ship in 1–2 business days after payment; delivery is usually 5–7 business days after shipment.
Delivery estimates vary. Check address eligibility and the full shipping policy before ordering.
Set up before the first ride
Review your model’s assembly instructions before riding. Check the brakes, tires and controls as directed, and ask our team if you need help completing setup.
If you need professional assembly, confirm availability and any charges with your chosen provider.
Understand the return conditions
Eligible e-bike returns must be requested within 15 days of delivery, with fewer than 10 miles, no signs of use or wear, and all original packaging and included items. Preauthorization is required.
Non-quality return shipping is $150–$350. Additional costs can apply if original packaging is not used.
Support after delivery
Contact our team for assembly questions, troubleshooting and warranty guidance.
Eligible 2026 and newer U.S. e-bikes have a limited warranty of up to 2 years or 5,000 miles, whichever comes first. Ownership requirements, coverage limits and exclusions apply.
Questions about fit, storage or getting started? Tell our team how you plan to ride.
Get help choosingWINGMAN is designed for riders who want a practical everyday E-Bike that fits into family life. It is ideal for errands, neighborhood rides, carrying essentials, and weekend outings.
Yes. E11EVEN offers a 15-day return window for eligible e-bikes. For non-defective returns, the bike must have fewer than 10 miles on the odometer, show no signs of use or wear, and include its original packaging. Return shipping costs $150–$350 and is deducted from your refund. If the return is due to an E11EVEN-verified quality issue, return shipping is covered.
You may not need to ship your entire bike back. E11EVEN offers technical support and works with authorized dealers and service partners in selected U.S. locations.
Our team can help troubleshoot problems, discuss available local service options, and guide you through replacement parts or warranty claims when applicable.
Email: marketing@e11evenbike.com
Some assembly and safety checks may be required before your first ride. You can view video here.
If you're unsure about any step, our support team can help with assembly questions, setup guidance, and troubleshooting. We recommend professional assistance for any safety-critical adjustments you're not comfortable making yourself.
For assistance, email marketing@e11evenbike.com
We're here to help. Please inspect your package when it arrives.
If you notice shipping damage or missing parts, contact marketing@e11evenbike.com within 48 hours of delivery with photos or videos of the issue.
Our team will review the situation and help determine the appropriate solution. Please keep the original packaging until the issue is resolved.
Eligible 2026 and newer E11EVEN e-bikes are covered against qualifying manufacturing defects for up to 2 years or 5,000 miles, whichever comes first.
Coverage includes eligible components such as the battery, motor, frame, brakes, and electrical system. Normal wear, accidental damage, misuse, and unauthorized modifications are generally excluded.
Simply email marketing@e11evenbike.com with your proof of purchase, a description of the issue, and clear photos or videos. Our technical support team will help identify the problem and explain the next steps.
If an eligible component needs replacement, we'll guide you through the warranty claim process.
Need a replacement battery, charger, brake component, or another part?
Contact our support team with your bike model and the part you're looking for. We'll help identify compatible options, check availability, and explain how to proceed. Some replacements may qualify for warranty coverage.
